Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective

  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
  • Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective
Tempat asal CINA
Nama merek FABIA
Sertifikasi ISO9001,CE,CCS,DNV
Nomor model 1/8 inci ～ 36 inci
Dokumen Brosur Produk PDF
Kuantitas min Order 1 set
Harga dapat dinegosiasikan
Kemasan rincian Karton/kasing kayu
Waktu pengiriman 15-30 hari kerja
Syarat-syarat pembayaran L/C, D/A, D/P, T/T, Moneygram, Western Union
Menyediakan kemampuan 100-1000 set per minggu

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Nama Produk Katup Kupu-Kupu Penjepit Pneumatik Tipe katup Kupu-Kupu Pneumatik
Bahan katup PVC Aktuator Katup Pneumatik
Koneksi katup Penjepit Segel katup EPDM
Cakram Katup PVC Tekanan katup PN16
Suhu katup -30℃~+135℃
Tinggalkan pesan
Deskripsi Produk

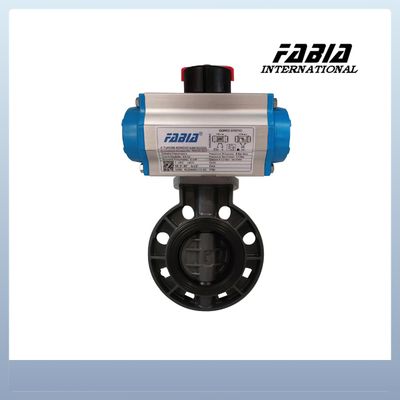

FABIA Soft Seal Pneumatic Clamp Butterfly Valve



1. Description:



Used in petroleum, chemical, light industry, pharmaceutical, paper, automobile and other industrial automatic control system for remote centralized control or local control equipment.



Can be widely used in petroleum, chemical, light industry, pharmaceutical, paper, automobile and other industrial automatic control system for remote centralized control or local control.



2. Specification:



FABIA Valve Parameter List
Valve type: Soft Seal Pneumatic Clamp Butterfly Valve
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt Clamp/Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D..........



3. Features:



  • Pneumatic butterfly valve, is in the introduction of foreign advanced technology on the basis of special design, carefully manufactured products.
  • Butterfly valve with travel limit switch, solenoid valve, triplet and 0.4-0.7MPa air source can realize switching operation, and send two pairs of passive contact signals to indicate the switch of the valve.
  • Using intelligent control and positioning, with domestic electrical valve positioner, input 4-20mADC signal and 0.4-0.7MPa air source can achieve intelligent control, to achieve the adjustment of pressure, flow, temperature, liquid level and other parameters.
  • Powered by compressed air, and the valve stem drives the spool to rotate 90 ° C in the valve body, which can realize the fully open - fully closed action.
  • Product is divided into metal seal and soft seal according to its sealing performance.
  • Advantages of compact structure, small size, reliable operation, good sealing, easy maintenance, convenient installation and strong adaptability.

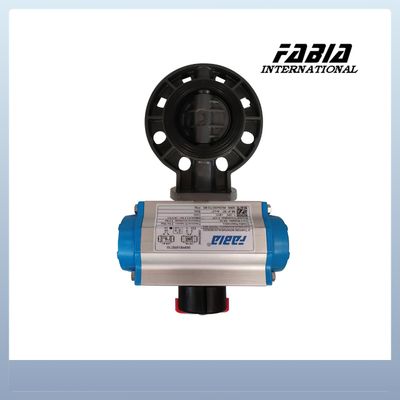

Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective 0

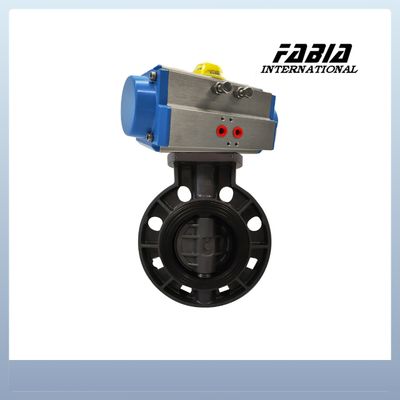

Pneumatic Soft Seal Butterfly Valve Clamp PVC Valve Lightweight and Cost-Effective 1
