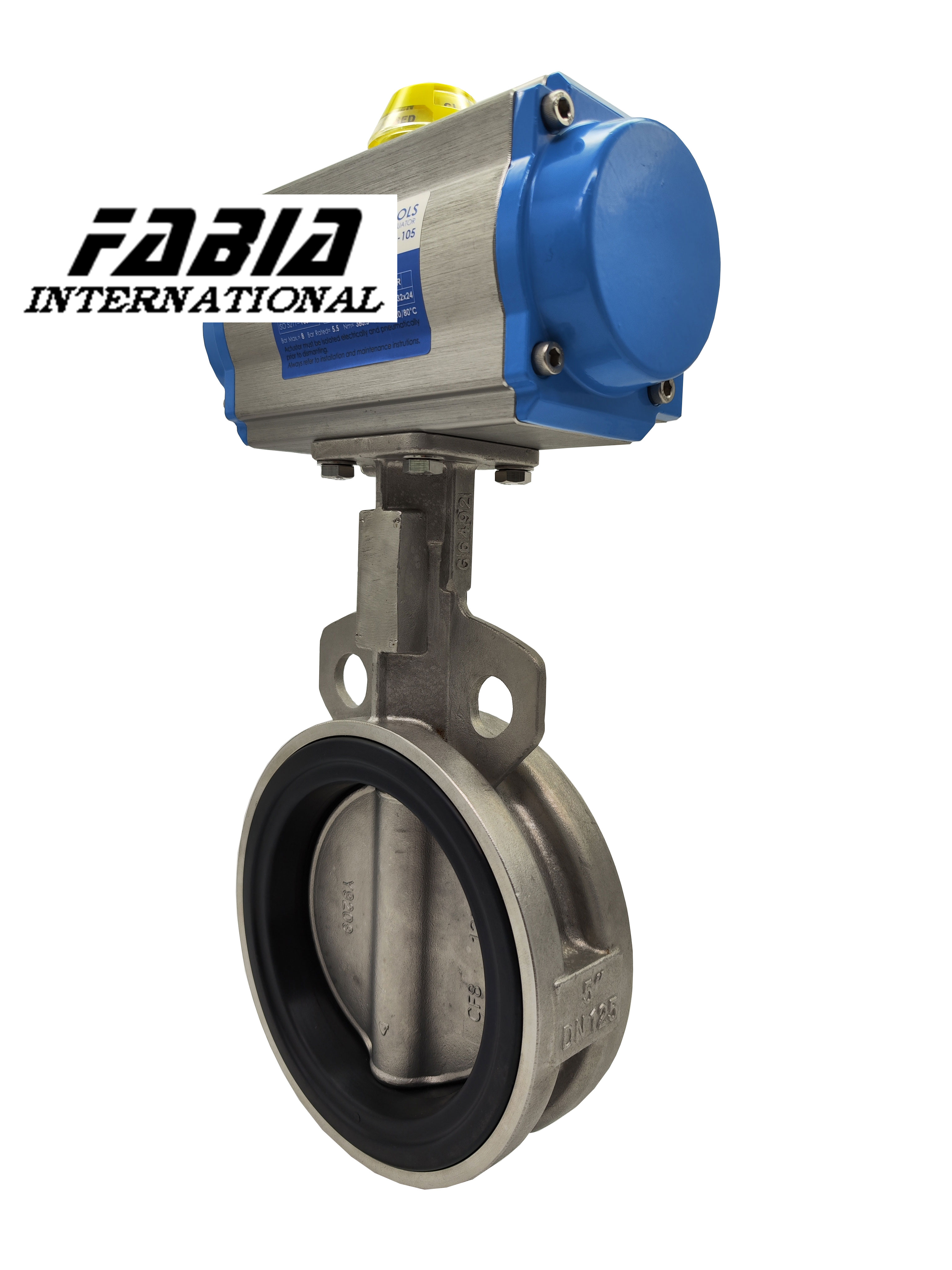

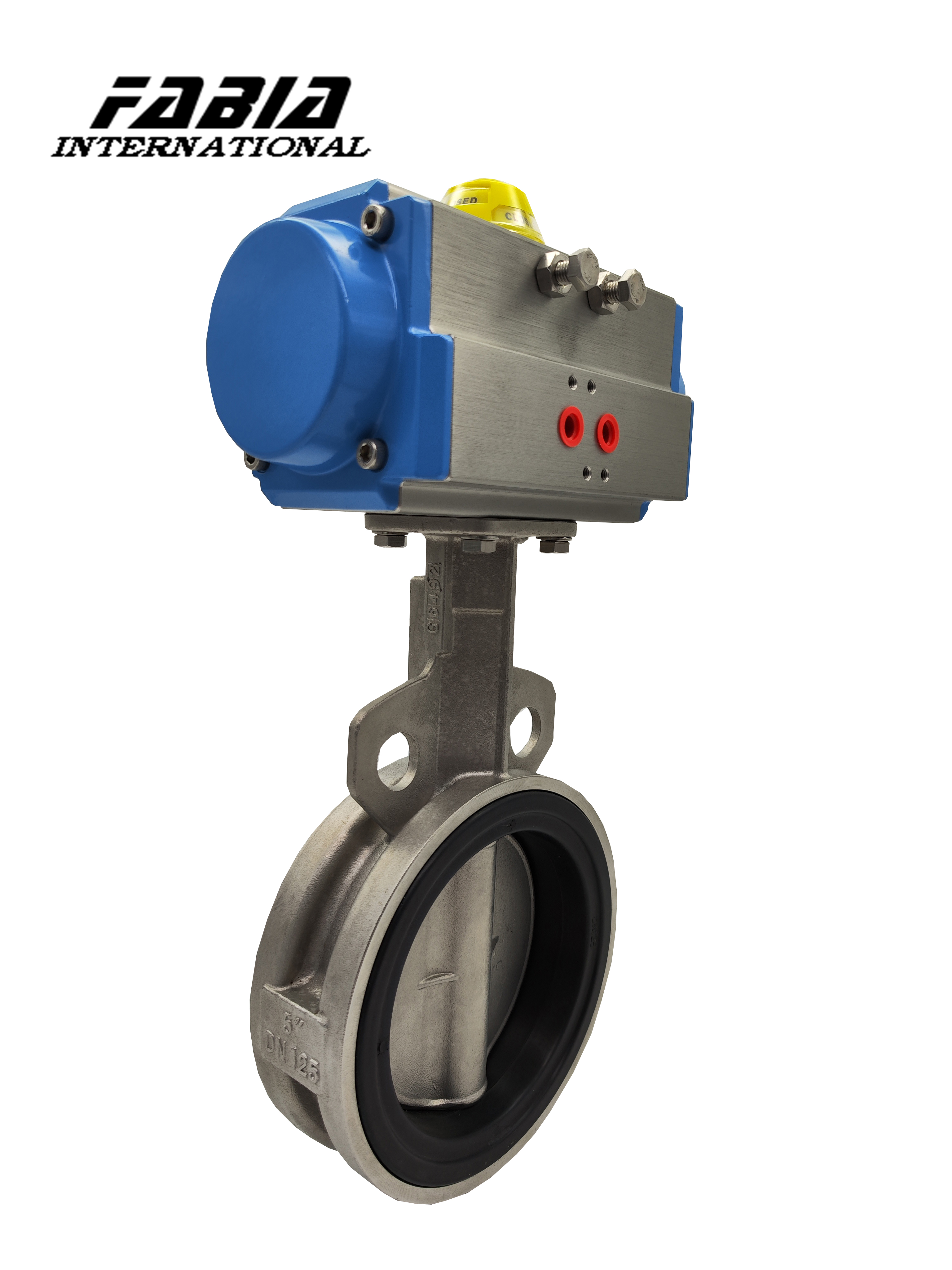

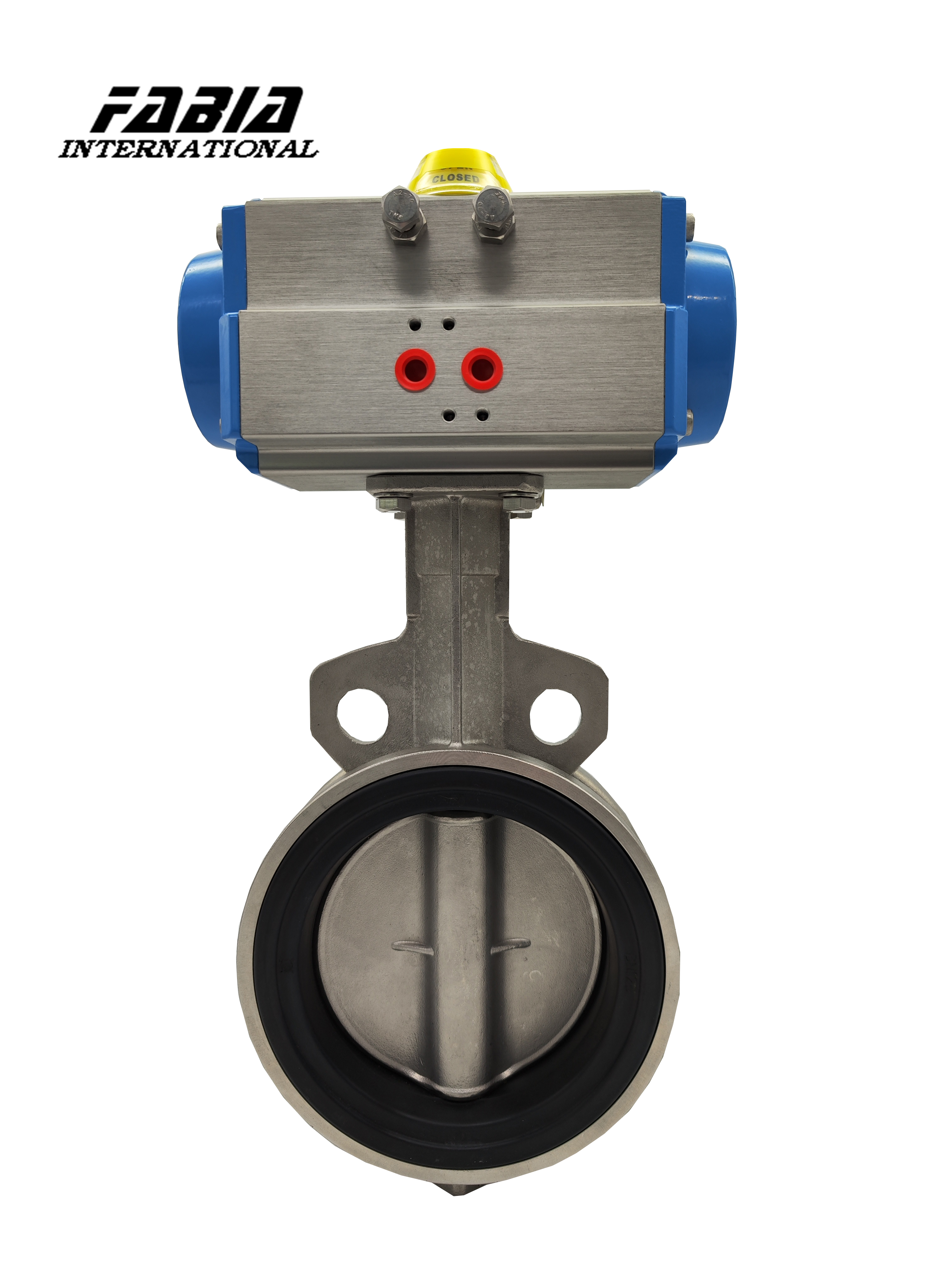

Clamp Pneumatic Butterfly Valve Stainless steel Body Soft Seal Butterfly Valve
| Tempat asal | CINA |
|---|---|
| Nama merek | FABIA |
| Sertifikasi | ISO9001,CE,CCS,DNV |
| Nomor model | 1/8 inci ～ 36 inci |
| Dokumen | Brosur Produk PDF |
| Kuantitas min Order | 1 set |
| Harga | dapat dinegosiasikan |
| Kemasan rincian | Karton/kasing kayu |
| Waktu pengiriman | 15-30 hari kerja |
| Syarat-syarat pembayaran | L/C, D/A, D/P, T/T, Moneygram, Western Union |
| Menyediakan kemampuan | 100-1000 set per minggu |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Nama Produk | Katup Kupu-Kupu Penjepit Pneumatik | Tipe katup | Katup Kupu-Kupu Pneumatik |
|---|---|---|---|
| Bahan tubuh | Baja tahan karat | Operasi | Pneumatik |
| Sambungan Katup Kupu-Kupu Badan Baja Karbon Katup Kupu-Kupu Segel Lembut | Penjepit | Cairan | Air, minyak, gas |
| Tekanan | PN16 | Kursi | PTFE, EPDM |
| Suhu | -30℃-150℃ |
Deskripsi Produk
Clamp Pneumatic Butterfly Valve Stainless steel Body Soft Seal Butterfly Valve
1. Description:
Pneumatic butterfly valve is a rotary valve controlled by a pneumatic actuator.
Controls the flow of the medium by turning the valve disc.
Main components of the pneumatic butterfly valve include the valve body, the seat, the valve disc, the pneumatic actuator, etc.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Pneumatic Clamp Butterfly Valve Carbon Steel Body Soft Seal Butterfly Valve | |
| Size: | 2 inch ～ 36 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt Clamp/Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN0.1～PN16 | |
| Temperature: | -40℃～1000℃ | |
| Model: | FB-D.......... | |
3. Features:
- Petrochemical: Pneumatic butterfly valves can be used for fluid control in the petrochemical production process, such as conveying oil, natural gas, acid and alkali solutions.
- Food and medicine: Pneumatic butterfly valves can be used for fluid control in food, pharmaceutical and other industries, such as conveying food raw materials, drugs and so on.
- Wastewater treatment: Pneumatic butterfly valves can be used for fluid control in the wastewater treatment industry, such as discharge and treatment of wastewater. Paper industry: Pneumatic butterfly valves can be used for fluid control in the paper industry, such as conveying slurry, wastewater, etc.
