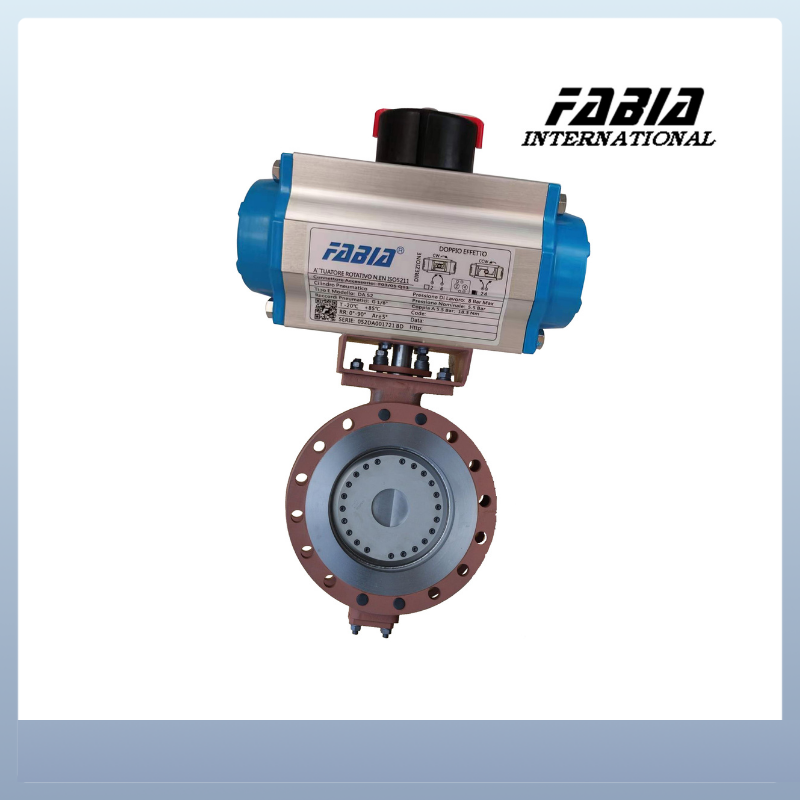

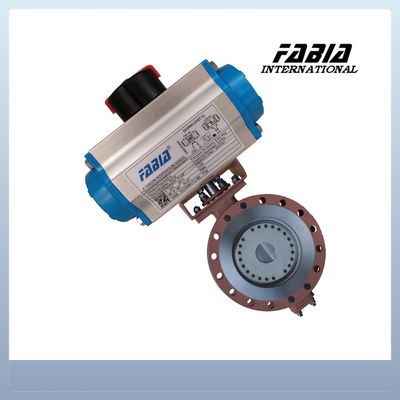

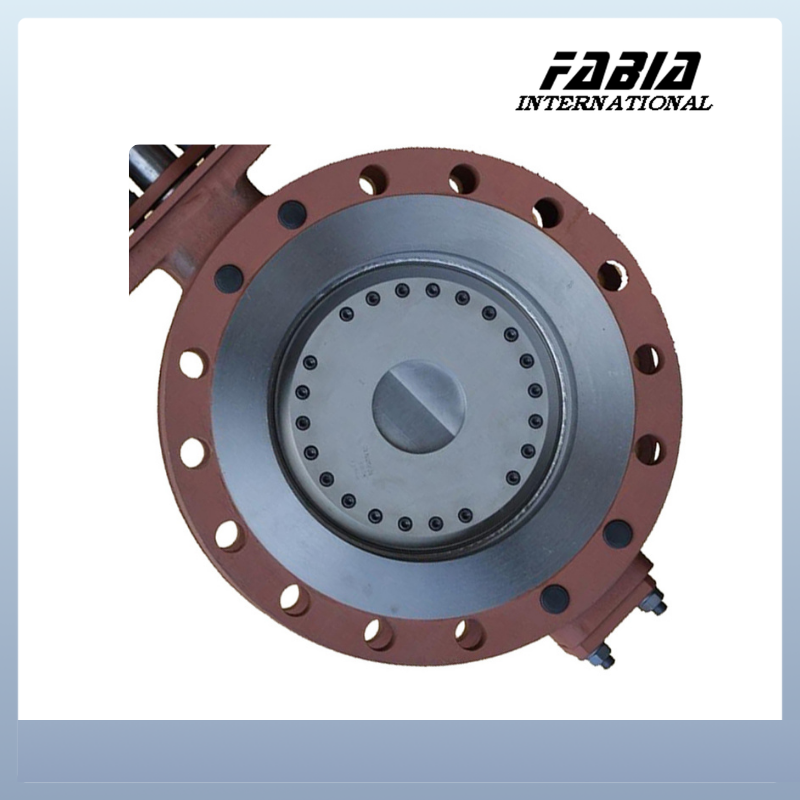

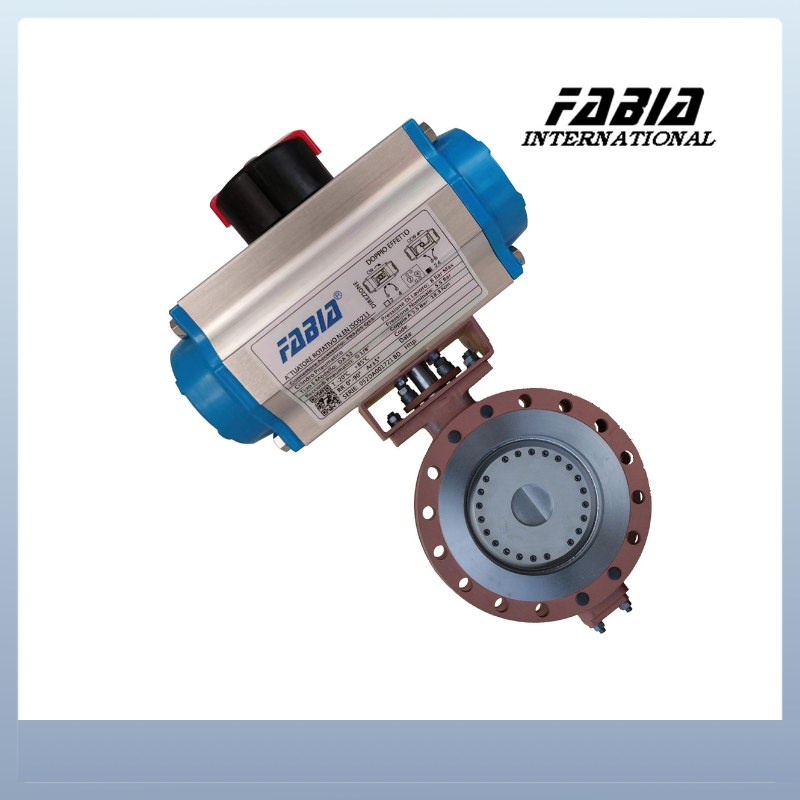

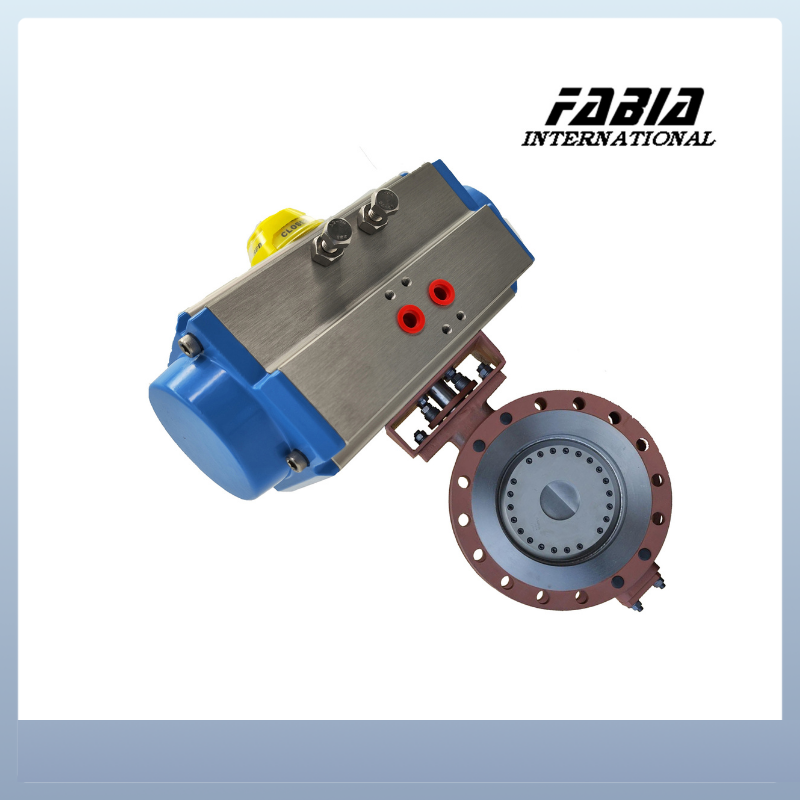

Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator

  • Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator
  • Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator
  • Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator
  • Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator
  • Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator
Tempat asal CINA
Nama merek FABIA
Sertifikasi ISO9001,CE,CCS,DNV
Nomor model 1/8 inci ～ 36 inci
Dokumen Brosur Produk PDF
Kuantitas min Order 1 set
Harga dapat dinegosiasikan
Kemasan rincian Karton/kasing kayu
Waktu pengiriman 15-30 hari kerja
Syarat-syarat pembayaran L/C, D/A, D/P, T/T, Moneygram, Western Union
Menyediakan kemampuan 100-1000 set per minggu

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Nama Produk Katup Kupu-Kupu Pneumatik Desain katup Katup kupu-kupu tiga eksentrik pneumatik
kontrol katup Pneumatik Tipe katup Kupu -kupu
Aplikasi katup Minyak Bumi, Kimia, Listrik, dll. Bahan katup Ggg40
Operasi katup Pneumatik Tekanan katup PN16
Suhu katup -30℃~+135℃
Tinggalkan pesan
Deskripsi Produk

FABIA  Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator


1. Description:


Three eccentric butterfly valve is suitable for food.


Medicine. Petrochemicals. A power plant. A steel mill.


Industrial environmental protection water treatment and high-rise buildings.


Water supply and drainage pipe is used to regulate the flow rate and cut off the fluid device.


Use of three-dimensional eccentric sealing structure, small wear between the seat and the butterfly plate, and the sealing surface wear resistance, prolong the service life.


2. Specification:


FABIA Valve Parameter List
Valve type: Pneumatic Three Eccentric Butterfly Valve
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt Clamp/Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D..........


3. Features:


  • Small structure, light type, flexible operation, labor-saving, convenient.
  • Reliable sealing, can achieve gas seal without leakage.
  • Flow characteristics tend to be linearly regulated.
  • Three-eccentric principle is adopted to make the sealing surface approximate zero loss and extend the service life of the valve.
  • Wide range of applications. Such as: can be used for water, steam, oil, air, gas and other media.
  • Applicable to different temperatures and pressure levels below 6.4MPa, corrosion resistance and other medium pipelines.





Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator 0

Three Eccentric Butterfly Valve Control Bring a Pneumatic Actuator 1
