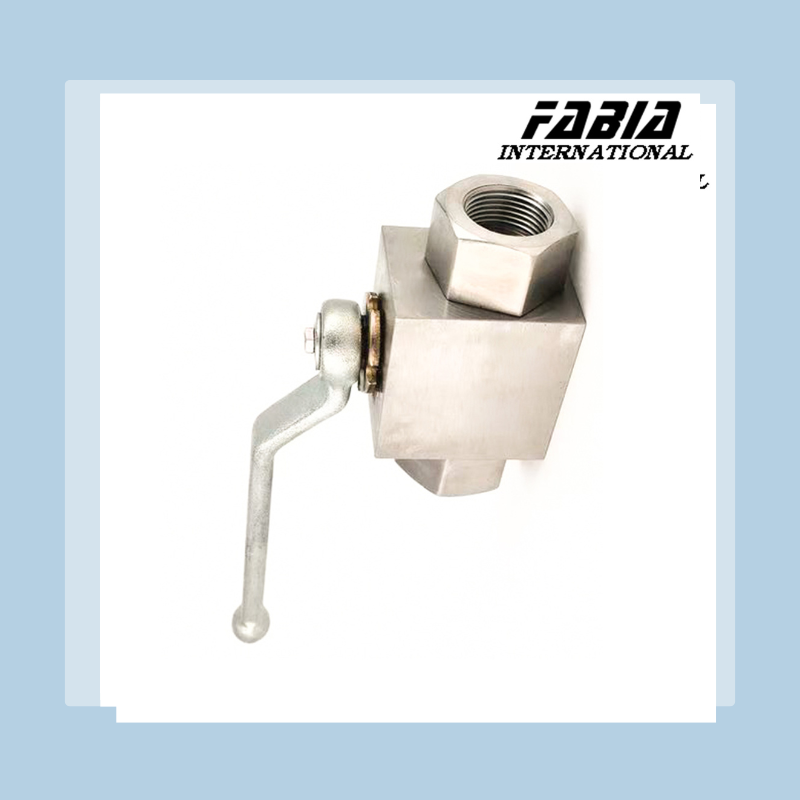

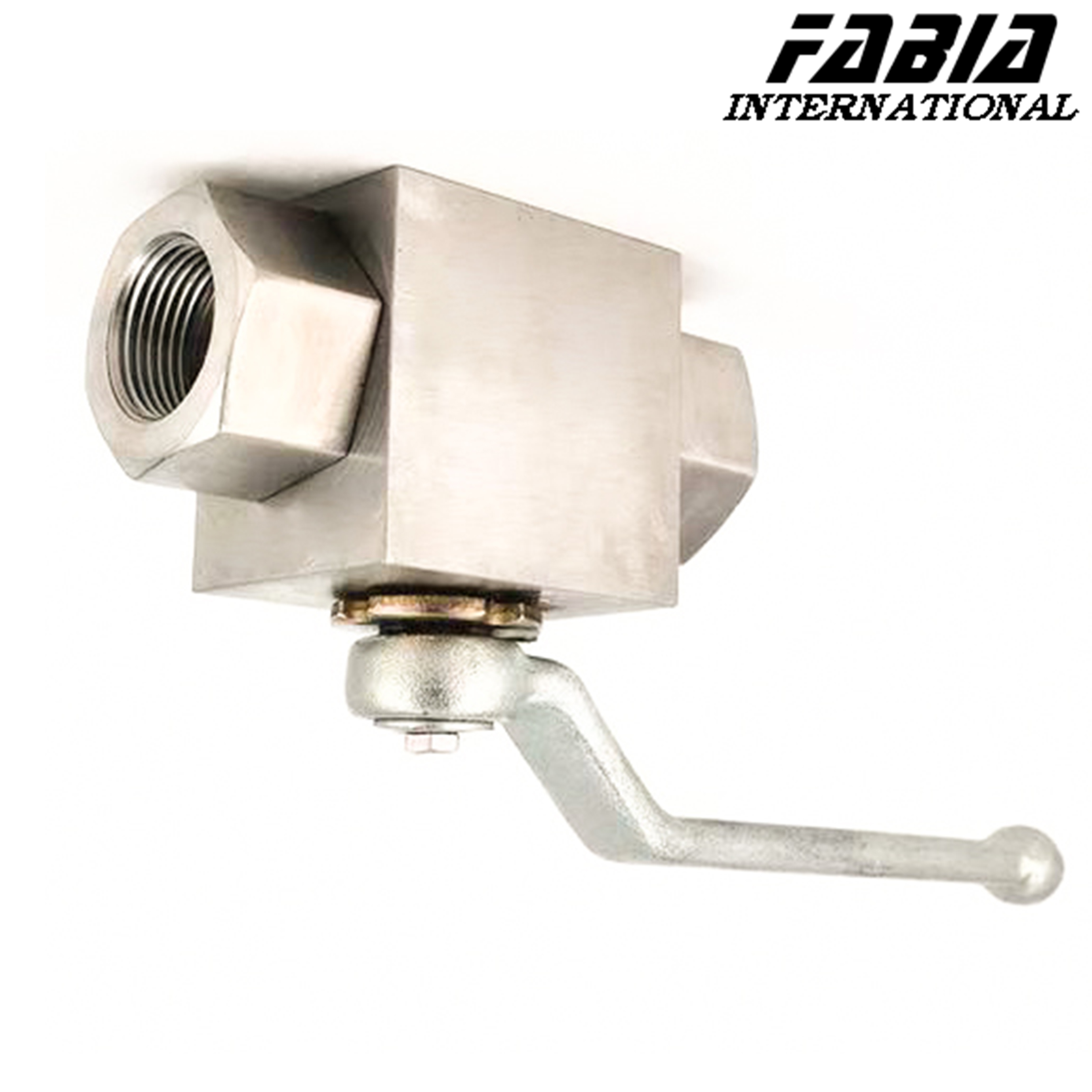

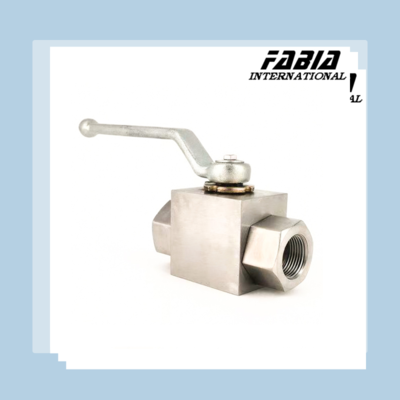

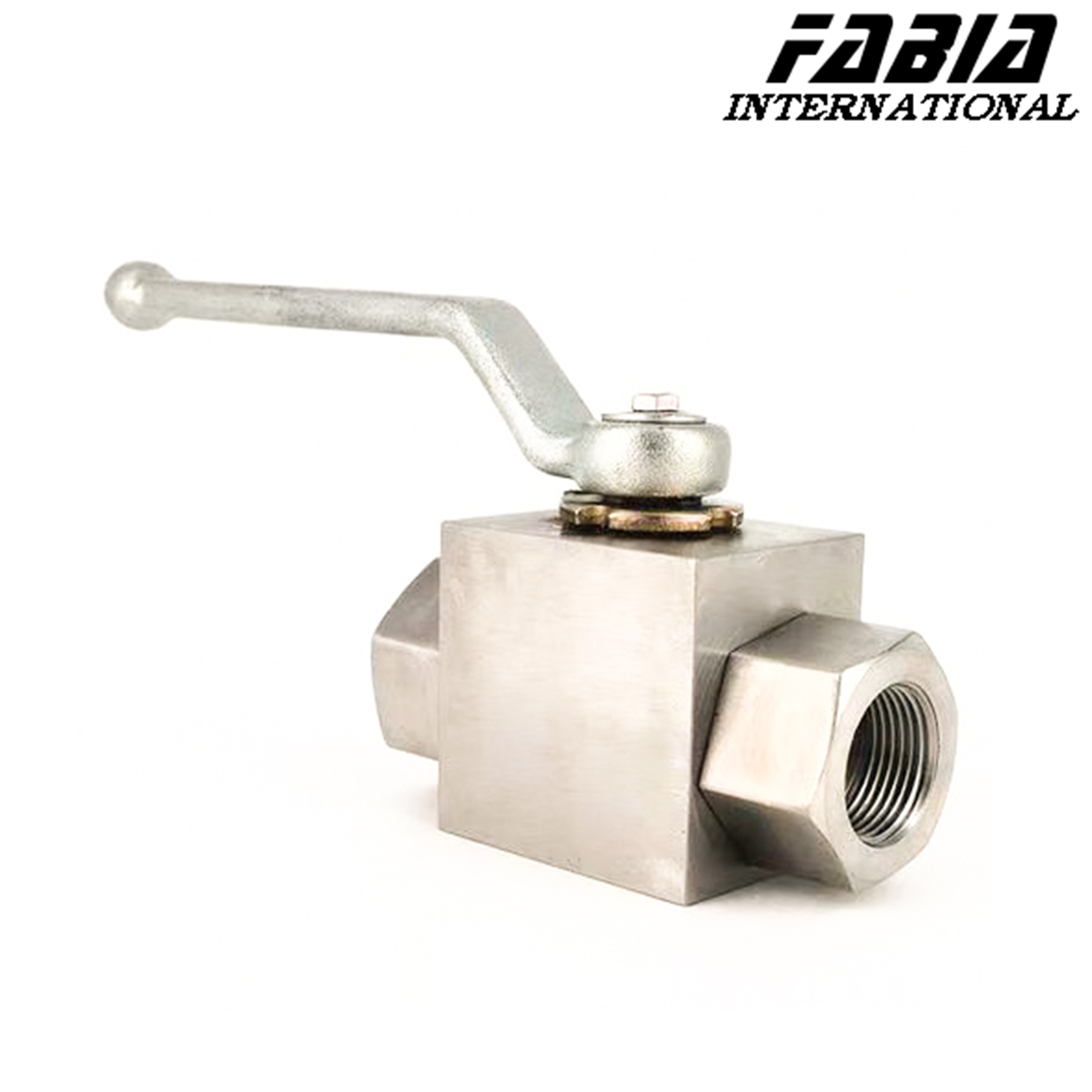

Easy to use Manual High Pressure Tee Butt Welding Ball Valve
| Tempat asal | CINA |
|---|---|
| Nama merek | FABIA |
| Sertifikasi | ISO9001,CE,CCS,DNV |
| Nomor model | 1/8 inci ～ 36 inci |
| Dokumen | Brosur Produk PDF |
| Kuantitas min Order | 1 set |
| Harga | dapat dinegosiasikan |
| Kemasan rincian | Karton/kasing kayu |
| Waktu pengiriman | 15-30 hari kerja |
| Syarat-syarat pembayaran | L/C, D/A, D/P, T/T, Moneygram, Western Union |
| Menyediakan kemampuan | 100-1000 set per minggu |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Nama Produk | Katup Bola Tekanan Tinggi Manual | Tipe katup | Katup Bola Tekanan Tinggi |
|---|---|---|---|
| Bahan | Baja tahan karat | Operasi | Manual |
| Jenis koneksi | Soket Dilas | Aplikasi | Minyak Bumi, Kimia, Pembangkit Listrik |
| Fitur | Anti-korosi, Anti-abrasi, Umur Panjang | Media | Air, minyak, gas |
| Sertifikat | ISO 9001 | Peringkat tekanan | 1000-6000PSI |
| Kursi | PTFE, PEEK | Ukuran | 1/2-8 inci |
| Kisaran suhu | -20 hingga 200°C |
Deskripsi Produk
FABIA Manual High Pressure Tee Butt Welding Ball Valve Simple and convenient
1. Description:
Composed of ball, valve seat, stem, handle, etc., with simple structure, good sealing, easy operation and other characteristics, widely used in petroleum, chemical, electric power, metallurgy and other industries.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Manual High Pressure Tee Butt Welding Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Fluid resistance is small, the ball valve is one of the small fluid resistance in all valves, even if it is a reduced diameter ball valve, the fluid resistance is quite small.
- Thrust bearing reduces the friction torque of the valve stem, which can make the valve stem operate smoothly and flexibly for a long time.
- Sealing performance of the seat is good, the sealing ring made of polytetrafluoroethylene and other elastic materials, the structure is easy to seal, and the sealing capacity of the ball valve increases with the increase of the medium pressure.
- Because polytetrafluoroethylene and other materials have good self-lubrication, and the friction loss with the ball is small, so the service life of the ball valve is long.
- Lower mounted valve stem and valve stem head convex step to prevent the valve stem ejecta, such as fire caused by the valve stem seal damage, the convex step and the valve body can also form metal contact to ensure the valve stem seal.
- Anti-static function: set the spring between the ball, valve stem and valve body, which can export the static electricity generated by the switching process. High pressure three-way ball valve is a common pipe connection device, mainly used for shunt, confluence, regulating flow and so on.
