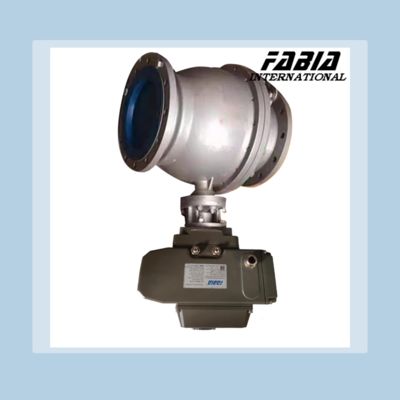

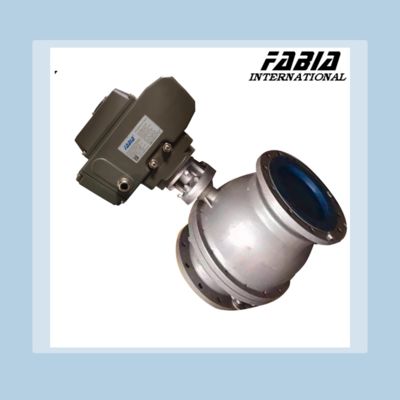

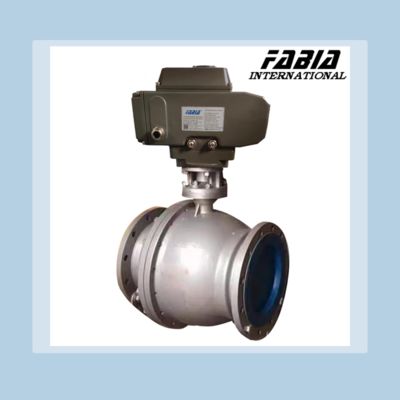

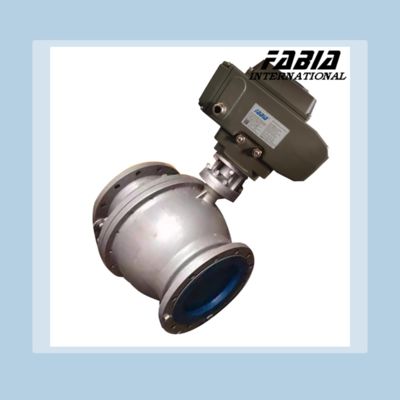

Wide caliber Electric High Pressure Ball Valve Two Piece Butt Welding Industry Ball Valve
| Tempat asal | CINA |
|---|---|
| Nama merek | FABIA |
| Sertifikasi | ISO9001,CE,CCS,DNV |
| Nomor model | 1/8 inci ～ 36 inci |
| Dokumen | Brosur Produk PDF |
| Kuantitas min Order | 1 set |
| Harga | dapat dinegosiasikan |
| Kemasan rincian | Karton/kasing kayu |
| Waktu pengiriman | 15-30 hari kerja |
| Syarat-syarat pembayaran | L/C, D/A, D/P, T/T, Moneygram, Western Union |
| Menyediakan kemampuan | 100-1000 set per minggu |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Nama Produk | Katup Bola Listrik Tekanan Tinggi | Tipe katup | Katup Bola Tekanan Tinggi |
|---|---|---|---|
| Bahan | Baja karbon | Operasi | Listrik |
| Aktuator | Listrik | Koneksi | Soket Las |
| Rentang tekanan | 150-2500PSI | Kursi | PTFE, PEEK |
| Ukuran | 1/2-8 inci | Kisaran suhu | 0-400°F |
| Karakteristik aliran | Linear, Persentase Sama |
Deskripsi Produk
Electric High Pressure Two-Piece Butt Welding Industry Ball Valve Wide caliber
1. Description:
Electric high-pressure two-piece butt welding ball valve is mainly used to cut off or connect the medium in the pipeline, and can also be used for fluid regulation and control, in which the hard sealed V-shaped ball valve has a strong shear force between its V-shaped core and the metal seat of surfacing cemented carbide, especially suitable for media containing fiber and small solid particles.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric High Pressure Two-Piece Butt Welding Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Main characteristics of high-pressure butt welding ball valve are compact structure.
- Reliable sealing, simple structure, convenient maintenance, sealing surface .
- Spherical surface are often in a closed state, not easy to be washed by the medium, easy to operate and maintain.
- Suitable for water, solvent, acid and natural gas and other general working media, but also suitable for poor working conditions of the medium.
- Such as oxygen, hydrogen peroxide, methane and ethylene, etc.
- Widely used in various industries.
