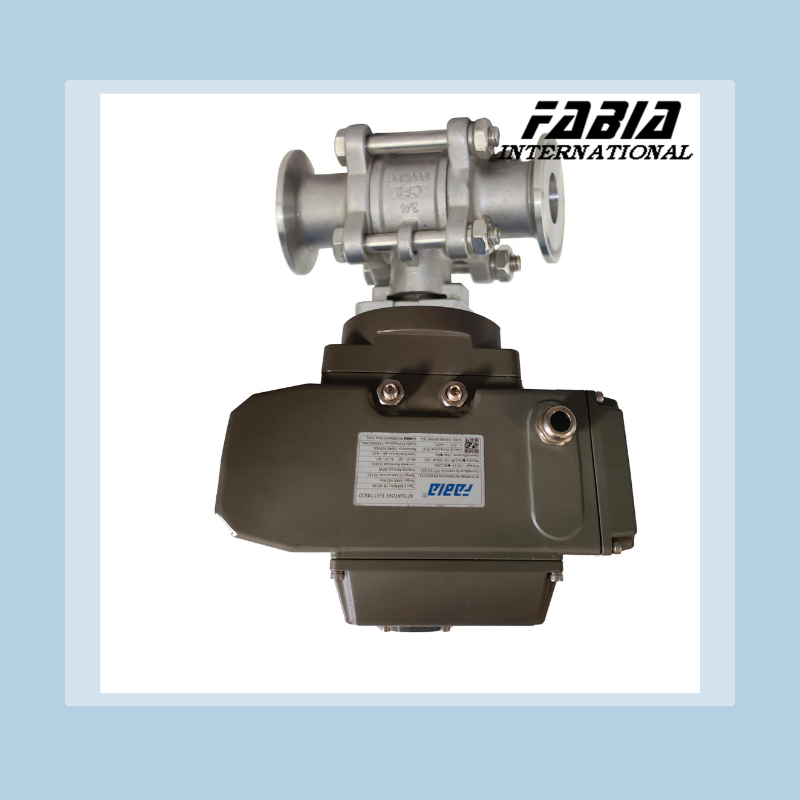

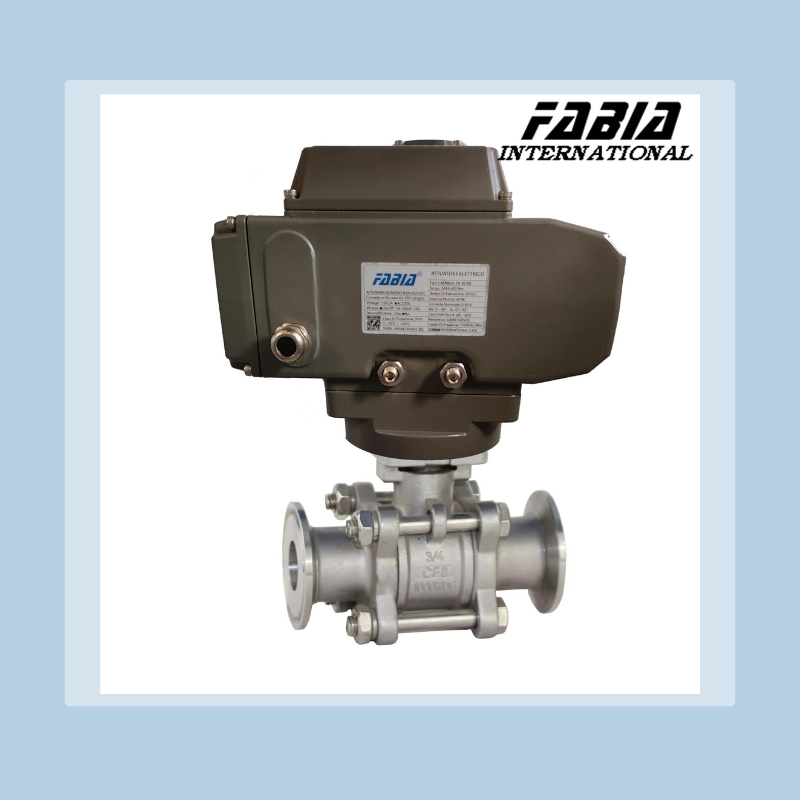

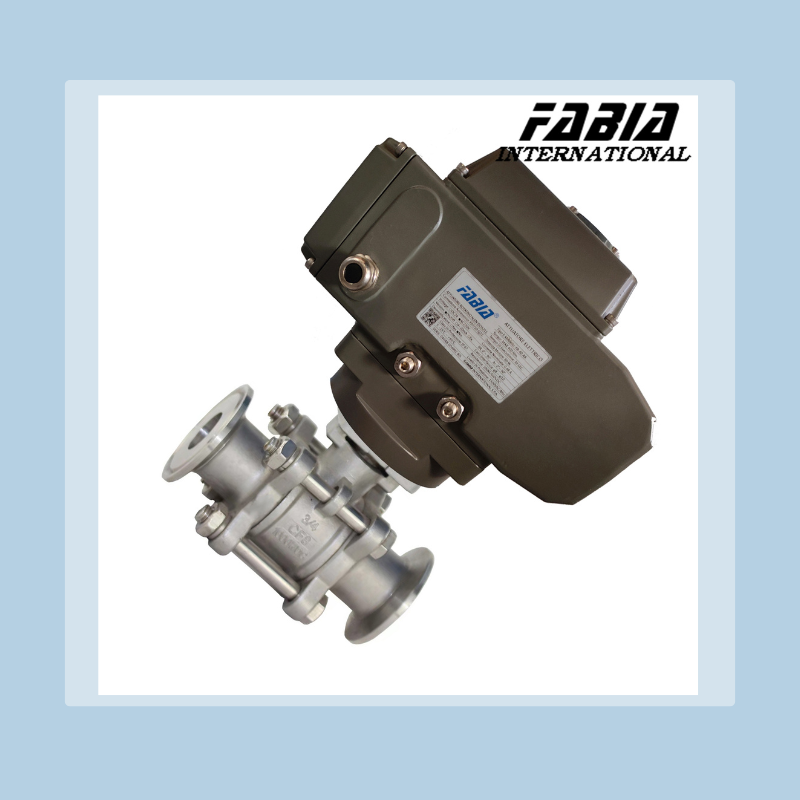

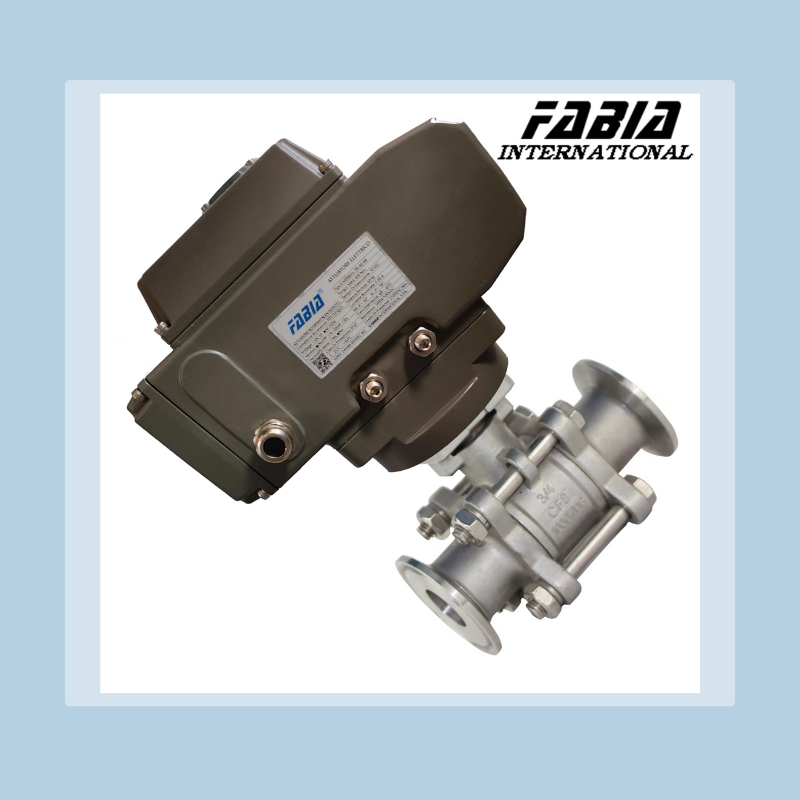

Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient

  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
  • Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient
Tempat asal CINA
Nama merek FABIA
Sertifikasi ISO9001,CE,CCS,DNV
Nomor model 1/8 inci ～ 36 inci
Dokumen Brosur Produk PDF
Kuantitas min Order 1 set
Harga dapat dinegosiasikan
Kemasan rincian Karton/kasing kayu
Waktu pengiriman 15-30 hari kerja
Syarat-syarat pembayaran L/C, D/A, D/P, T/T, Moneygram, Western Union
Menyediakan kemampuan 100-1000 set per minggu

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Nama Produk Katup Bola Tiga Bagian Tekanan Tinggi Listrik Tipe katup Katup Bola Tekanan Tinggi
Bahan katup Baja tahan karat Operasi katup Listrik
Koneksi katup Berulir Desain katup 3 buah
Tekanan katup 1000 psi Peringkat Tekanan Katup Kelas 150
Penyegelan katup Penyegelan Logam Ukuran katup 1/2-8
Suhu katup 260°F Aplikasi katup Minyak bumi, bahan kimia, listrik, dll
Tinggalkan pesan
Deskripsi Produk

Electric High Pressure Three-Piece Ball Valve With Internal Teeth Precise


1. Description:


Electric high pressure three piece internal thread ball valve ball core channel can be pipe line through the ball.


Overall smooth, simple structure, good sealing performance.


Especially suitable for applications requiring zero leakage rate.


2. Specification:


FABIA Valve Parameter List
Valve type: Electric High Pressure Three-Piece Ball Valve With Internal Teeth
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........


3. Features:


  • Electric three-piece screw ball valve is small in size, and the electric three-piece ball valve is composed of three parts of the valve shell, which is formed by four longer bolts clamping the middle valve body and the valve ball from both ends.
  • Advantage is that the maintenance disassembly does not need to remove the pipe thread, and directly disassemble the four bolts, and the middle part of the valve body can be removed.
  • Working principle is also through the 90 degree rotation of the pneumatic actuator to drive the rotation of the sphere to achieve the flow and block of the medium.



Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient 0


Precise Electric High Pressure Three Piece Ball Valve With Internal Teeth Convenient 1
