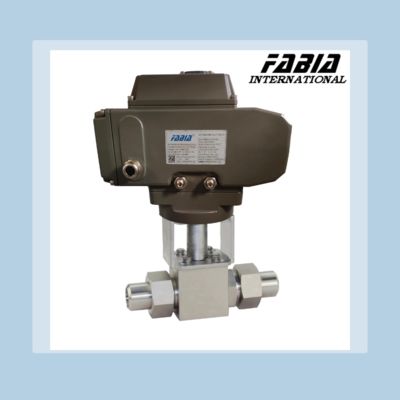

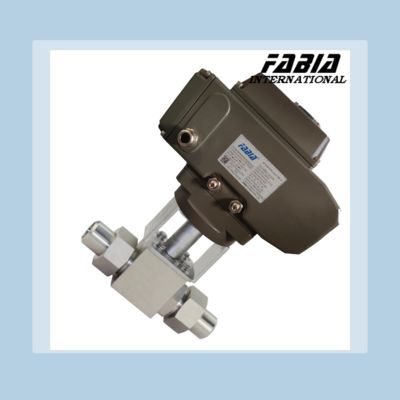

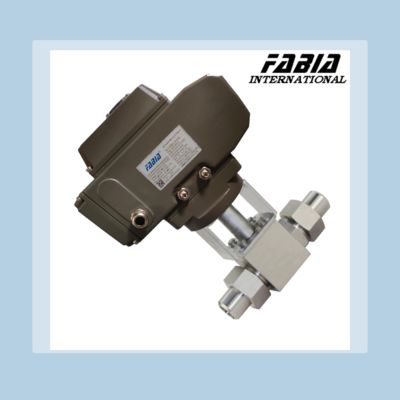

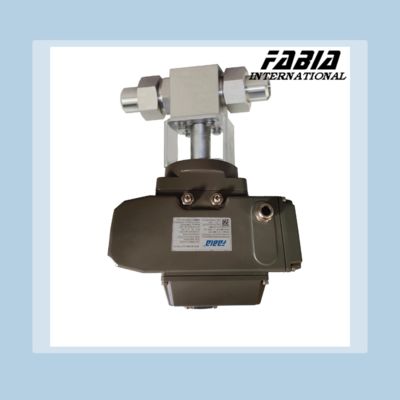

Electric Ball Valve Two Way Butt Welding Ball Valve 1 2" 3/4" High Pressure
| Tempat asal | CINA |
|---|---|
| Nama merek | FABIA |
| Sertifikasi | ISO9001,CE,CCS,DNV |
| Nomor model | 1/8 inci ～ 36 inci |
| Dokumen | Brosur Produk PDF |
| Kuantitas min Order | 1 set |
| Harga | dapat dinegosiasikan |
| Kemasan rincian | Karton/kasing kayu |
| Waktu pengiriman | 15-30 hari kerja |
| Syarat-syarat pembayaran | L/C, D/A, D/P, T/T, Moneygram, Western Union |
| Menyediakan kemampuan | 100-1000 set per minggu |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.
xDetail produk
| Nama Produk | Katup Bola Pengelasan Butt Tekanan Tinggi Listrik | Tipe katup | Katup Bola Tekanan Tinggi |
|---|---|---|---|
| Katup | Tekanan tinggi | Bahan | Baja tahan karat |
| Koneksi | Pengelasan Butt | Operasi | Listrik |
| Media | Air, minyak, gas | Peringkat tekanan | Tekanan tinggi |
| Segel | PTFE/EPDM | Rentang tekanan | 0-10MPA |
| Ukuran | 1/2-8 inci | Sertifikat | ISO 9001 |
| Kisaran suhu | -20°C hingga +120°C |
Deskripsi Produk
FABIA Electric Two Way Butt Welding Ball Valve High Pressure
1. Description:
Electric two-way ball valve is usually connected by the electric actuator and the valve, and becomes an electric valve after installation and debugging.
Electric two-way valve uses electric energy as the power to connect the electric actuator to drive the valve and realize the switching and adjusting action of the valve.
So as to achieve the purpose of switching or adjusting the pipeline medium.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric High Pressure Two Way Butt Welding Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Used to control the opening or closing of cold water or hot water air conditioning system pipes, to achieve the purpose of controlling room temperature.
- Driver is driven by a single hysteresis synchronous motor, the valve spring is reset, the valve is not working when it is normally closed, when it needs to work, the thermostat provides an open signal, so that the electric valve is connected to the AC power supply and action.
- Open the valve, chilled water or hot water into the fan coil, to provide cold or heating for the room, when the temperature reaches the thermostat set value,
- Thermostat makes the electric valve power off, the reset spring to close the valve, thus cutting off the flow into the fan coil,
- through the valve closed and opened, so that the room temperature is always maintained in the temperature control set temperature range.
