Pneumatic Butterfly Valve For Air Valve Water Oil Gas

  • Pneumatic Butterfly Valve For Air Valve Water Oil Gas
Tempat asal CINA
Nama merek FABIA
Sertifikasi FM,AMCA,ISO9001,CE,CCS,DNV
Nomor model 1 inci ～ 40 inci
Dokumen Brosur Produk PDF
Kuantitas min Order 1 set
Harga dapat dinegosiasikan
Kemasan rincian Karton/kasing kayu
Waktu pengiriman 15-30 hari kerja
Syarat-syarat pembayaran L/C, D/A, D/P, T/T, Moneygram, Western Union
Menyediakan kemampuan 100-1000 set per minggu

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Nama Produk Damping Kupu-kupu Bulat Koneksi katup Flens
Bahan baja tahan karat Tubuh katup baja tahan karat
Mode Kontrol Manual/Pneumatik/Listrik Tekanan desain ±6000Pa
Kebocoran 56l/dtk/m³（2000Pa） Menerapkan Semikonduktor, panel LCD, biofarmasi
Tinggalkan pesan
Deskripsi Produk

Pneumatic Butterfly  Valve

Water  Oil  Gas

1. Description:


The product is mainly used in industries such as semiconductors, LCD panels, and biopharmaceuticals for ventilation and exhaust system air volume control valves.Divided into micro, medium, and large sizes based on the size .


2. Specification:


Round butterfly(Micro Size)

Product No. Size Height Outer size D(shaft) Control Model
FB-RBD-0020-01 20 25 105 D12 Electric/Pneumatic
FB-RBD-0025-02 25 25 115 D12
FB-RBD-0032-03 32 25 135 D12
FB-RBD-0040-04 40 25 145 D12
FB-RBD-0050-05 50 30 160 D12
FB-RBD-0063-06 63 30 180 D12
FB-RBD-0080-07 80 30 195 D12
FB-RBD-0100-08 100 30 215 D12
FB-RBD-FREE FREE


Round butterfly(Medium Size)

Product No. Size Height Thickness
(body)		 Thickness
(blade)		 D(shaft) Control Model
VB-RBD-0100-01 D100 150 1.2 1.5 D12 Electric/Pneumatic
VB-RBD-0100-02 D150 150 1.2 1.5 D12
VB-RBD-0100-03 D200 200 1.2 1.5 D12
VB-RBD-0100-04 D250 250 1.2 2.0 D12
VB-RBD-0100-05 D300 250 1.2 2.0 D12
VB-RBD-0100-06 D350 250 2.0 2.5 D25
VB-RBD-0100-07 D400 250 2.0 2.5 D25
VB-RBD-0100-08 D450 250 2.0 2.5 D25
VB-RBD-0100-09 D500 250 2.0 3.0 D25
VB-RBD-0100-10 D550 250 2.0 3.0 D25
VB-RBD-0100-11 D600 250 2.0 3.0 D25
VB-RBD-FREE FREE


3. Features:


  • Type:micro, medium, and large size
  • Design Pressure:±6000Pa
  • Leakage:56L/s/m³(2000Pa)
  • Beautiful, low noise, and low resistance l

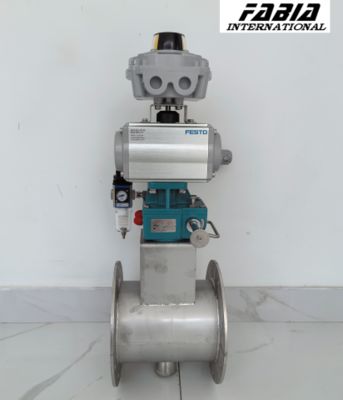

Pneumatic Butterfly Valve For Air Valve Water Oil Gas 0

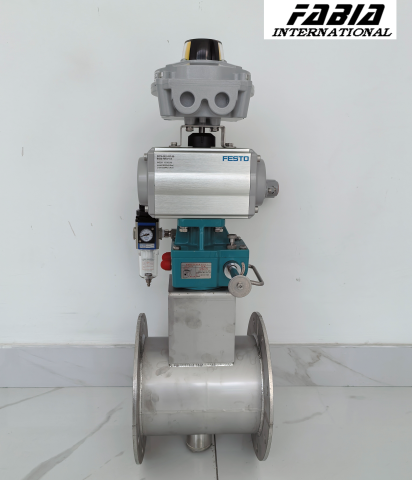

Pneumatic Butterfly Valve For Air Valve Water Oil Gas 1
